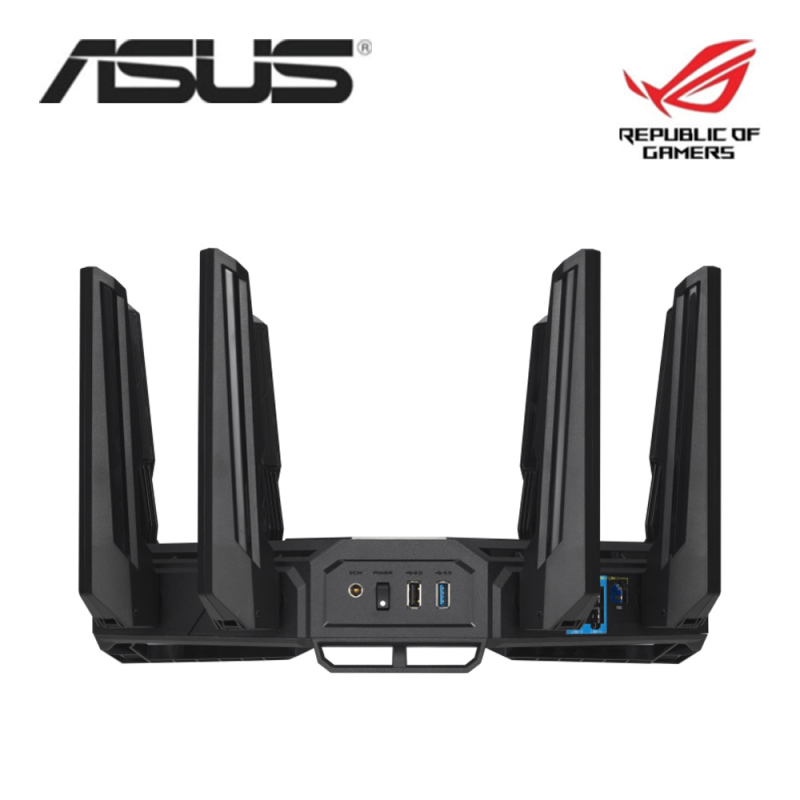

Asus ROG Rapture GT-BE98 BE25000 Quad-band WiFi 7 (802.11be) Gaming Router

Data Sheet

Product Features

BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps

Network Protocols & Features

WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IPv4
IPv6

ADSL Standards

2.4GHz 4x4
5GHz-1 4x4
5GHz-2 4x4
6GHz 4x4

ADSL Data Rates

2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp

Technology

AiMesh
• Primary AiMesh Router
• AiMesh Node

Parental Control Customized Internet Schedule
• Maximum Profile: 64
• Maximum Content Filter Rule: 64

Guest Network Connection limit
• Encryption : Open system, WPA/WPA2/WPA3 Personal

Refresh Rate

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth

Button

WPS Button, Reset Button, Power Switch, LED control Button

LED Indicator

1 x WAN(Internet)
1 x 10G LAN
1 x 1G/2.5G LAN
1 x 6GHz
1 x 5GHz-1
1 x 5GHz-2
1 x 2.4GHz
1 x Power

Antenna

8

CPU / Processor

2.6GHz quad-core processor

Memory

256 MB Flash and 2 GB RAM

Interface

1 x 10Gbps for WAN/LAN
1 x 2.5Gbps for WAN/LAN
1 x 10Gbps for LAN
3 x 2.5Gbps for LAN
1 x RJ45 10/100/1000Mbps for LAN
1 x USB 3.2 Gen1
1 x USB 2.0

Battery / Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 19.5 V with max. 3.33 A current

Dimensions

350.41 x 350.41 x 220.6 mm

Weight

2000 g

Remark

3 Years Asus Warranty
